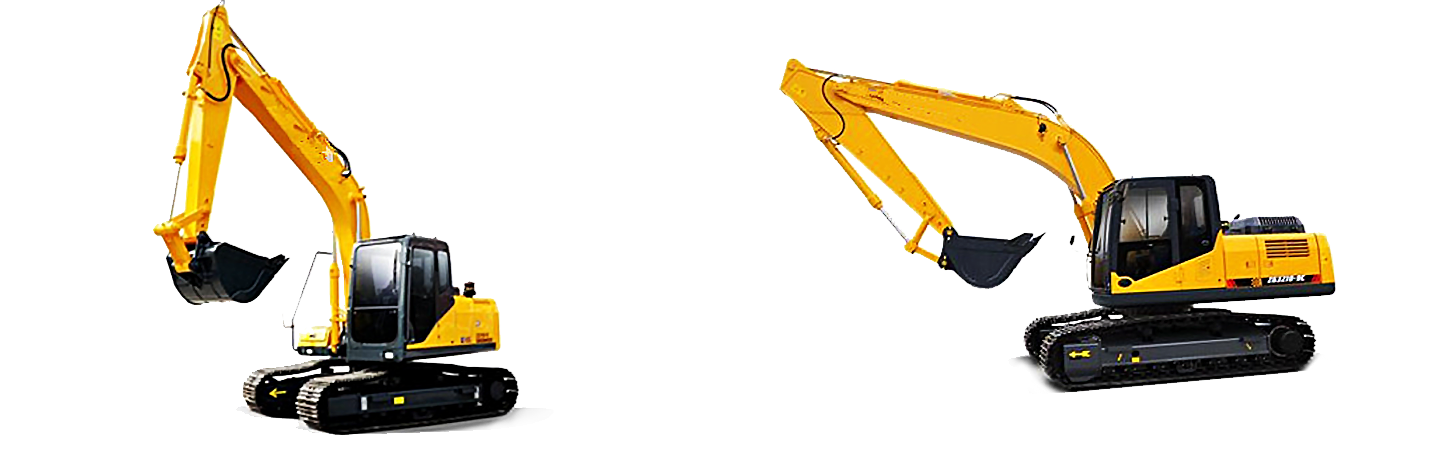

Excavator
Nov 17 ，2023 | Hits:333
| Operating weight (Kg) | 50500 |
| Rated bucket capacity (m³) | 3.2 |
| Overall length (mm) | 11657 |
| Overall width (Standard track shoe) (mm) | 3340/3562 (over steps) |
| Overall height (mm) | 3998 |
| Standard track shoe width (mm) | 600 |
| Travelling speed (H/L) (Km/hr) | 5.5/3.1 |
| Swing speed (rpm) | 9.4 |
| Gradeability (Degree (%)) | 35 (70%) |
| Ground pressure (Kgf/cm²) | 0.85 |
| Maximum digging radius (mm) | 10922 |
| Maximum digging depth (mm) | 6453 |
| Maximum digging height (mm) | 11020 |
| Bucket digging force (kN) | 290 |
| Stick digging force (kN) | 270 |
| Diesel engine | Cummins QSM11 |
| Type | 6-cylinder in-line, four-stroke turbocharger |
| Rated power | 280kW@2000rpm |
