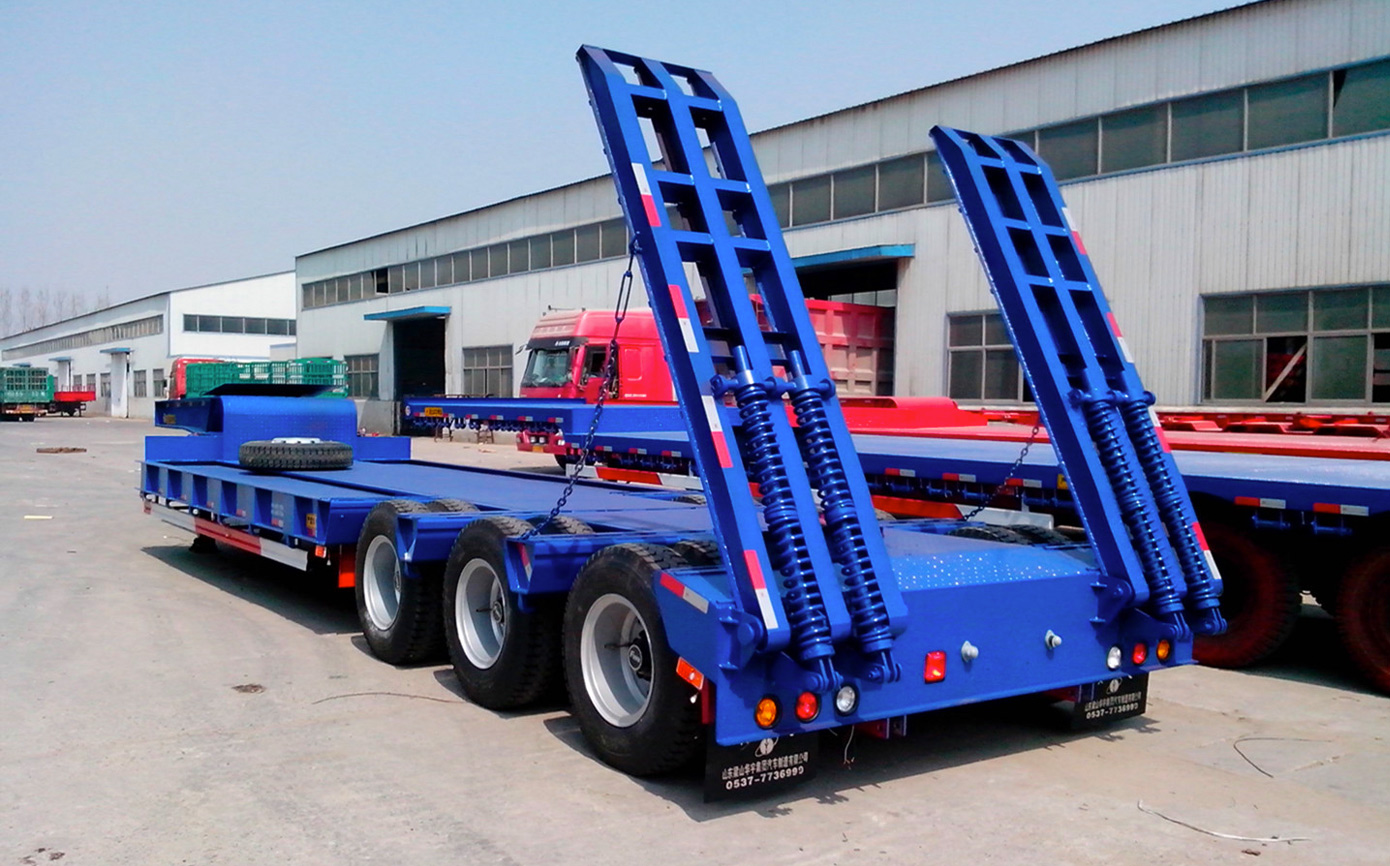

Low Bed Semi Trailer
Nov 17 ，2023 | Hits:327
| Main Dimensions | |
| Shape | Low Bed Semi Trailer |
| Dimension | 16000mm*3000mm（extending to 3500mm）*3250mm ( Exact size depends on the final design) |
| Working platform height is 950mm | |
| Tare weight | About 13.5 tons |
| Loading capacity | 60tons |
| Chassis | |
| Main Beams | Welding Design, Q345 carbon steel Height:500mm |
| Upper plate :20mm ,down plate 20mm, middle plate 12mm | |
| Side beam | 25# channel steel Q235B |
| Platform | 4mm diamond flat bed, Q235B steel |
| Bottom Cross beam | 14# steel |
| Axle | 4 axles *11.5T axles Fuwa brand |
| Landing Gear | 28T |
| King Pin | JOST 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/ America type |
| Leaf Spring | 90(W)mm*16(Thickness)mm*10 pieces |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Rim | 6.7-17.5, 17pieces |
| Tire | 235/75R17.5 Triangle Brand 17 pieces |
| Ladder | With strong type |
| ABS | Without ( according to customer requirement ) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime |
| Accessories | One standard tool box |
